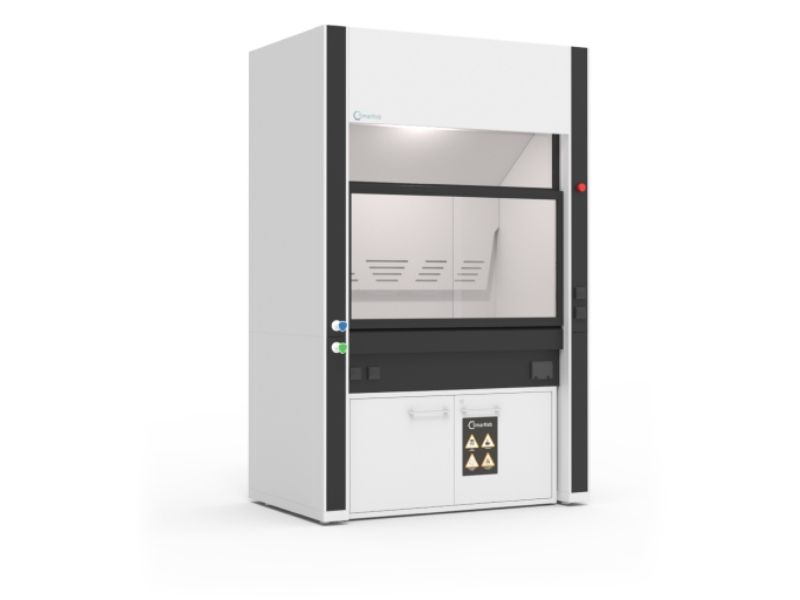

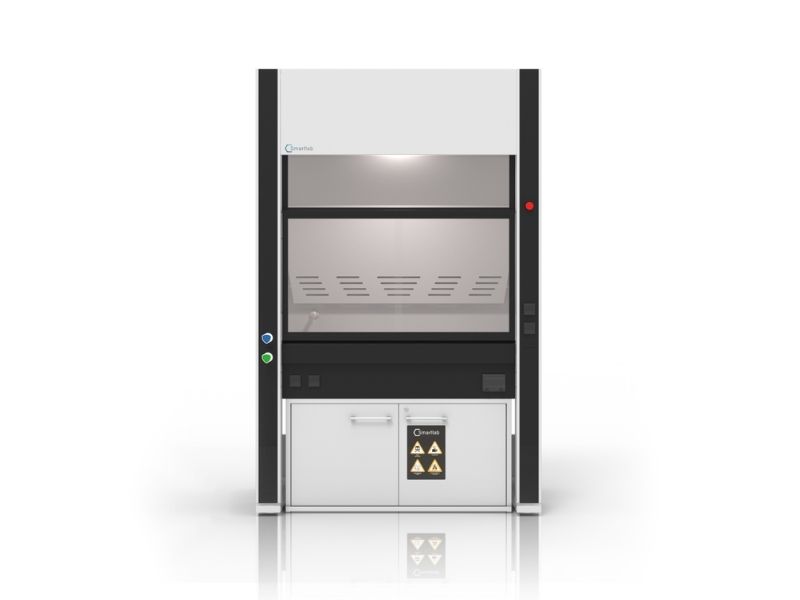

Smartlab’s Fume Cupboards redefine laboratory safety, offering customizable solutions with advanced ventilation technology. From compact designs to high-capacity units, our fume cupboards provide tailored protection for diverse applications.
Smartlab fume hoods manufactured according to EN 14175 EU standards to increase performance and ensure health safety. Owns CE certificate for user and environment safety. Drainage management systems is offered optionally.
| Organic solvents | |
| Weak acids | |
| Diluted inorganic acids | |
| Cold concentrated inorganic acids | |
| Hot concentrated inorganic acids | |
| Hydrofluoric acid | |
| Radioactive substances | |
| Radioactive substances |
| DIMENSIONS | (mm) |
|---|---|
| Width | 1200 / 1500 / 1800 |
| Depth | 950 |
| Height | 2350/2650 |
| Worktop Length | 900 / 1200 / 1500 |
| Worktop Width | 730 |
| Interior Height | 1400 |
| Work Bench Height | 900 |
| SPECIFICATIONS | |
|---|---|
| Sash | Safety Glass with Horzontal and Vertical Movement |
| Construction | Galvanized Steel |
| Paint | Electrostatic Powder Paint |
| Working Surface | Industrial Ceramic
Solid Grade Laminate Epoxy Resin Stainless Steel |
| Fume Cupboard Foot | Chemical resistant foot that can counter ground slopes |
| Electrıcıty | |
|---|---|
| Electrical Sockets | IP44 220V-16A Electrical Sockets/ Optional Three-phase Sockets |
| Fuse Box | 16A / 32A |
| Lightning | IP65 Protective Lightning |
| Emergenecy Button | IP65 Emergency Button |
| Controller | Compliant with EN 14175 Standatds, fan suction speed controller |
| water and gas connectıons | |
|---|---|
| Water Connections | Compliant with DIN 12898 Standard
Armatures and valves are compliant with Compliant with ISO228 / 1 Standard Manufactured in accordance with |
| Sink | Polypropylene (PP)
Epoxy Resin Stainless Steel Industrial Ceramic |
| Gas Connections | Compliant with DIN 12898 Standard
Armatures and valves are compliant Compliant with ISO228 / 1 Standard Manufactured in accordance with |
